Customizable 18S1P 24000 mAh 67.5V 300 Wh/kg Industrial Drone Batteries and BMS
Transportation Drones Battery Pack
Customizable agricultural drone BMS-02.webp

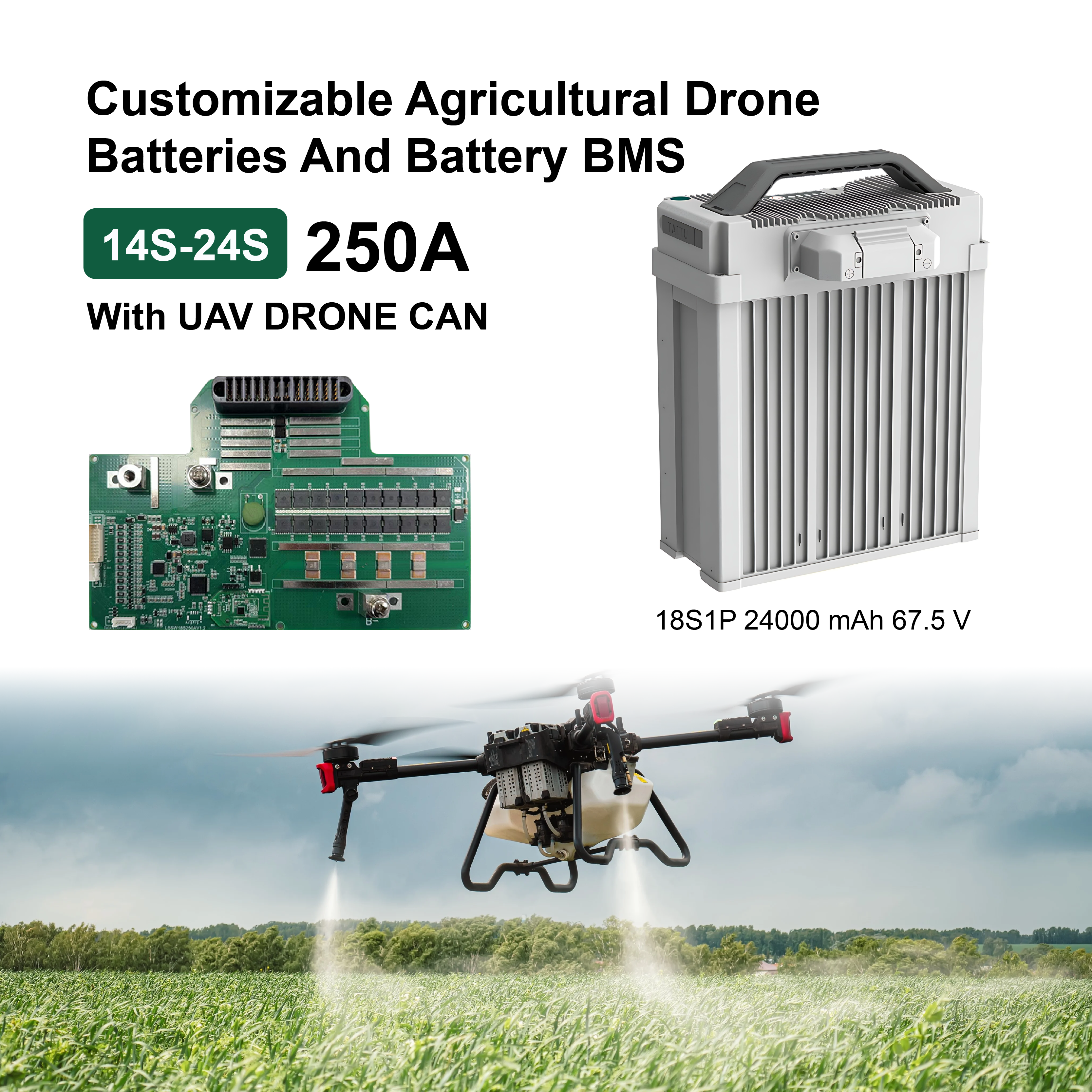

Customizable agricultural drone BMS-01.webp

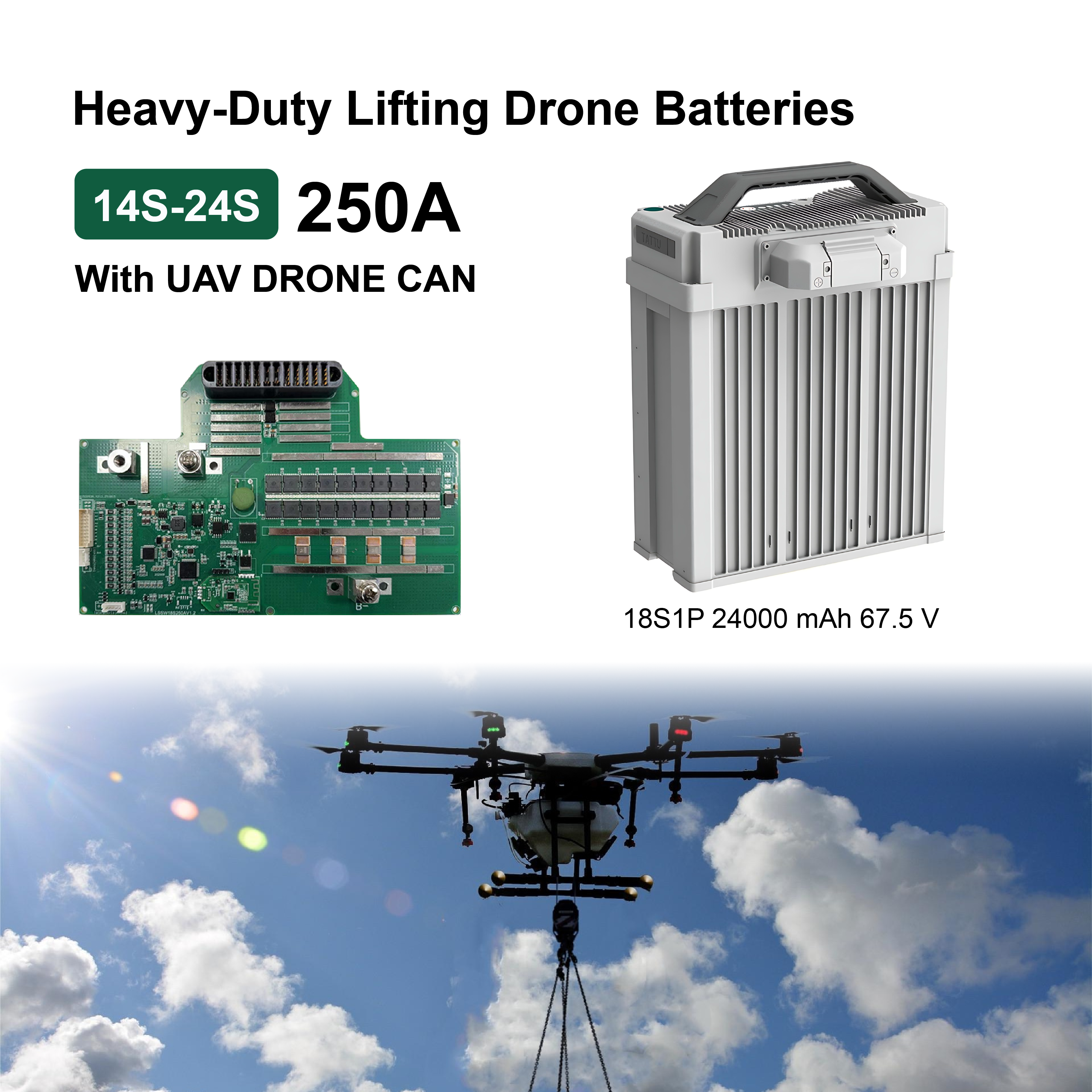

Customizable agricultural drone BMS-04.webp
Customizable agricultural drone BMS-15.webp

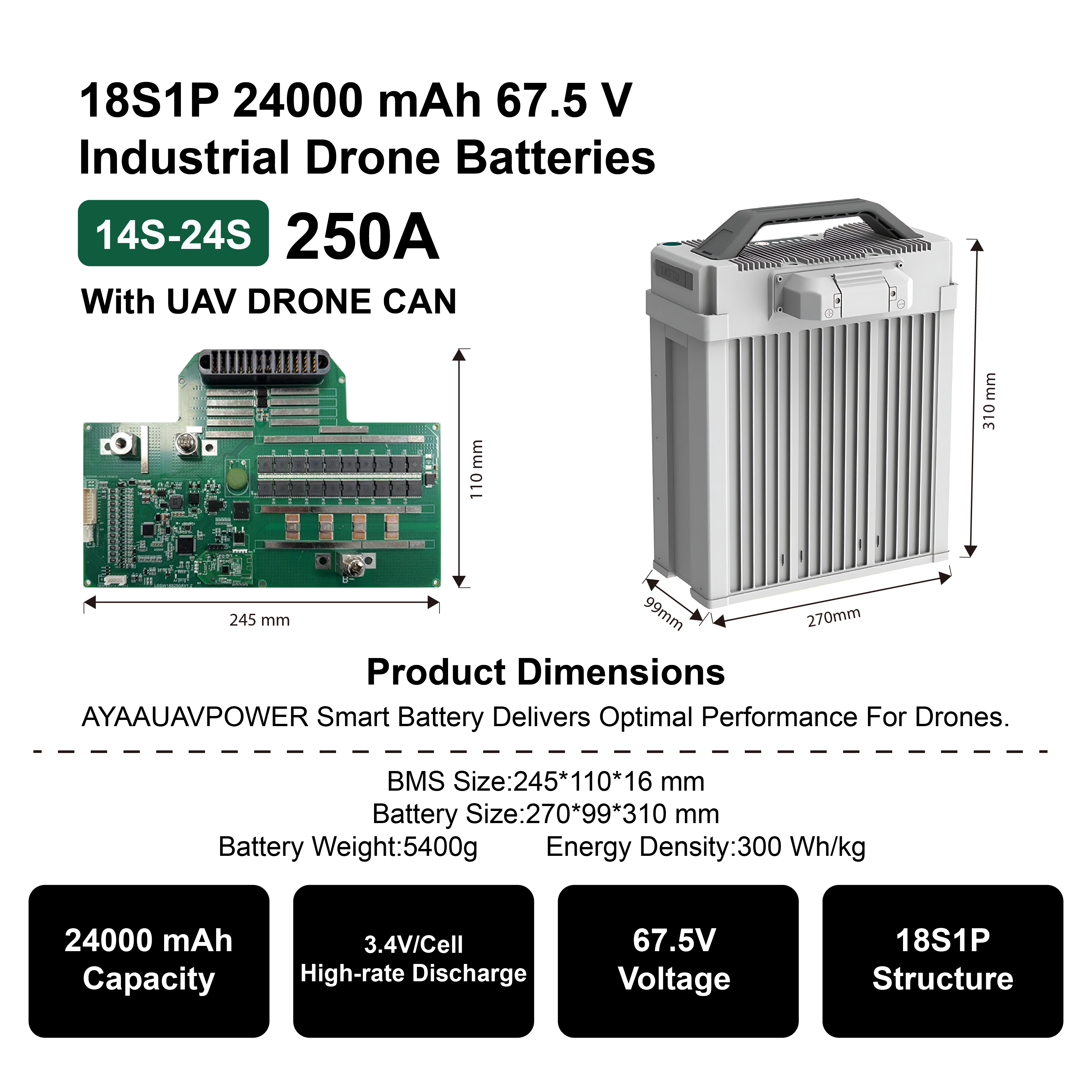

Customizable agricultural drone BMS-03.webp
Customizable agricultural drone BMS-05.webp

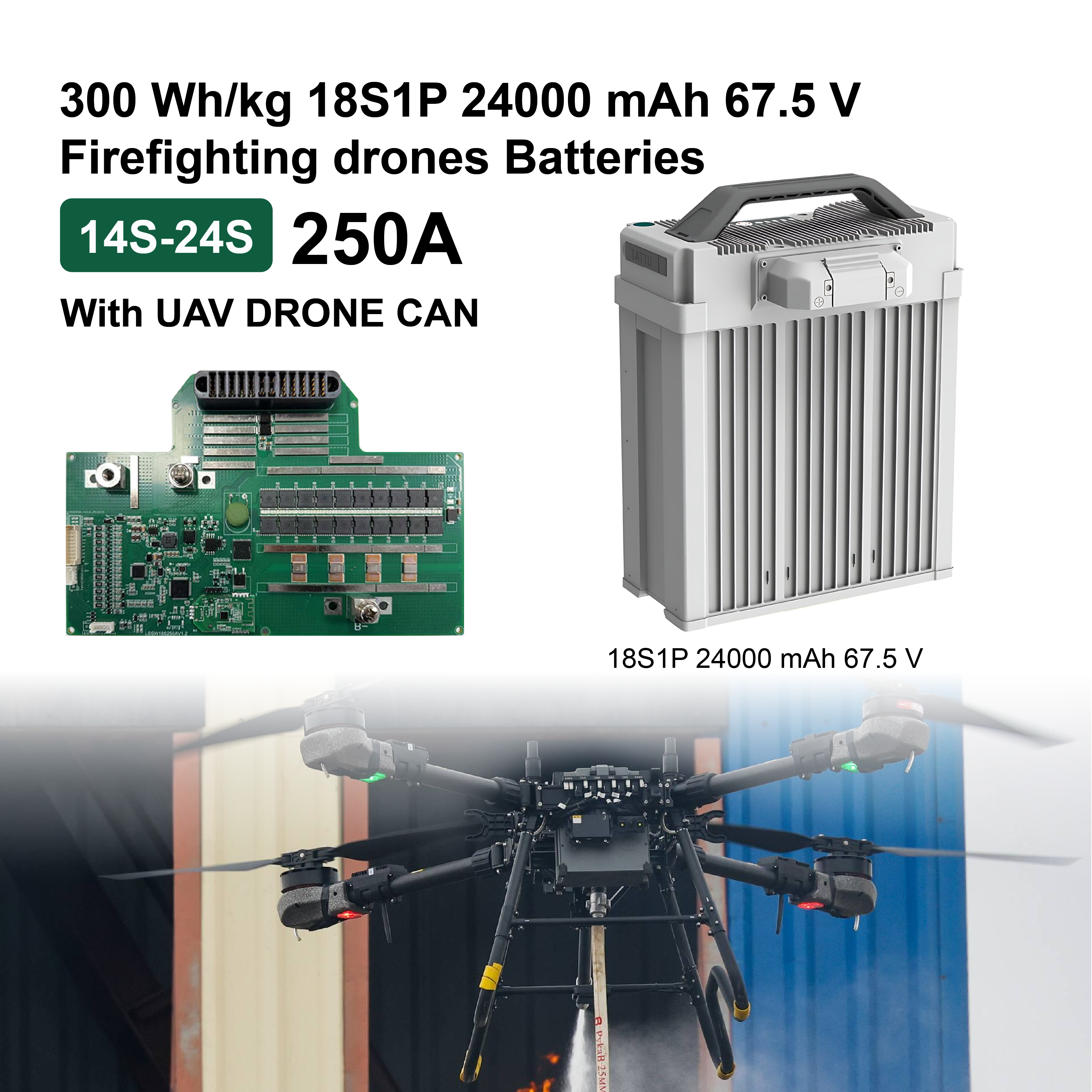

Customizable 18S1P 24000 mAh 67.5V 300 Wh/kg Industrial Drone Batteries and BMS

Product Introduction

Professional UAV systems' power requirements are met by the 18S1P 24000 mAh 67.5V Industrial Drone Battery with integrated BMS. For industrial drones engaged in heavy-duty hauling, firefighting, and agricultural spraying, it supplies steady voltage and energy. To fit various drone systems and mission profiles, the battery's configuration, capacity, and connector type can be altered.

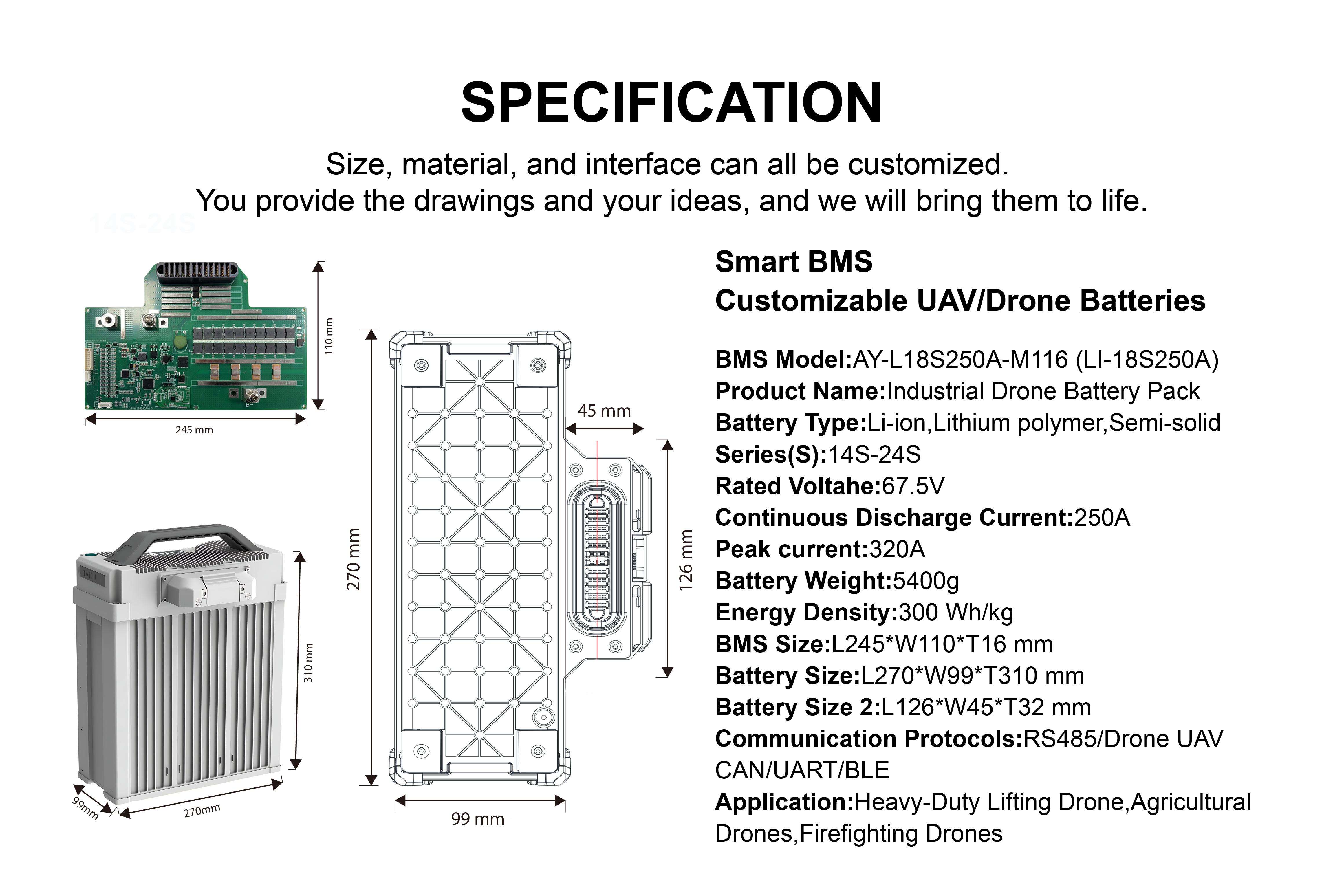

  • Model Series AY-L18S250A-M116 (LI-18S250A)
  • Product Name Industrial Drone Battery Pack
  • Battery Type Li-ion,Lithium polymer,Semi-solid
  • Series (S) 14S-24S
  • Rated Voltage 67.5V
  • Continuous Discharge Current 250A
  • Peak Current 320A
  • Battery Weight 5400g
  • Energy Density 300 Wh/kg
  • BMS Size L245 × W110 × T16 mm
  • Battery Size L270 × W99 × T310 mm
  • Battery Size 2 L126 × W45 × T32 mm

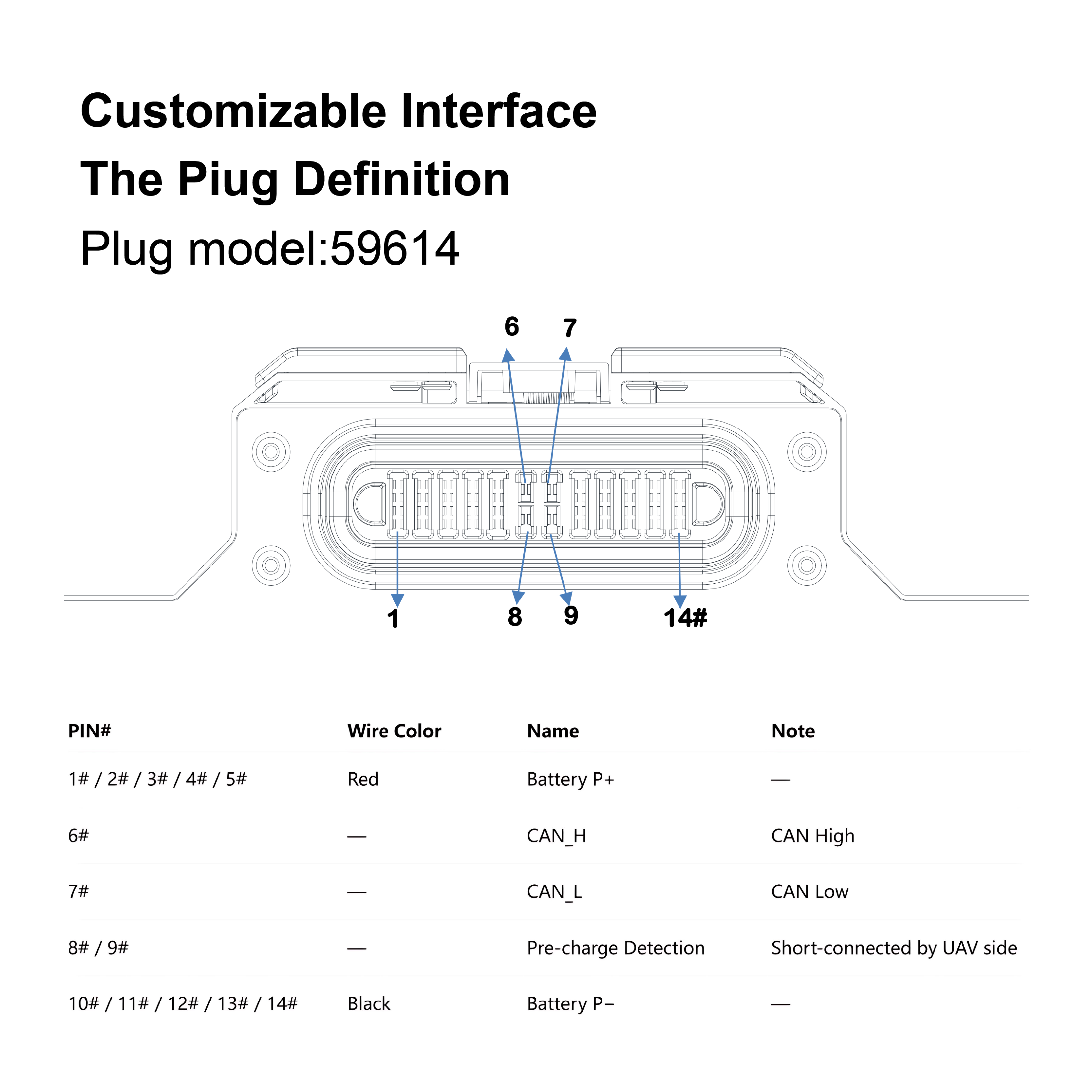

  • Communication Protocols RS485 / UAV CAN / UART / BLE
  • Application Fields Heavy-Duty Lifting Drones / Agricultural Drones / Firefighting Drones
分享 LinkedIn X WhatsApp Facebook Reddit Email Telegram
Contact us Download

Key Features

Through its integrated BMS, this industrial-grade drone battery system facilitates communication, reliable output, and high-capacity energy storage.

For more information or technical support, feel free to contact us.

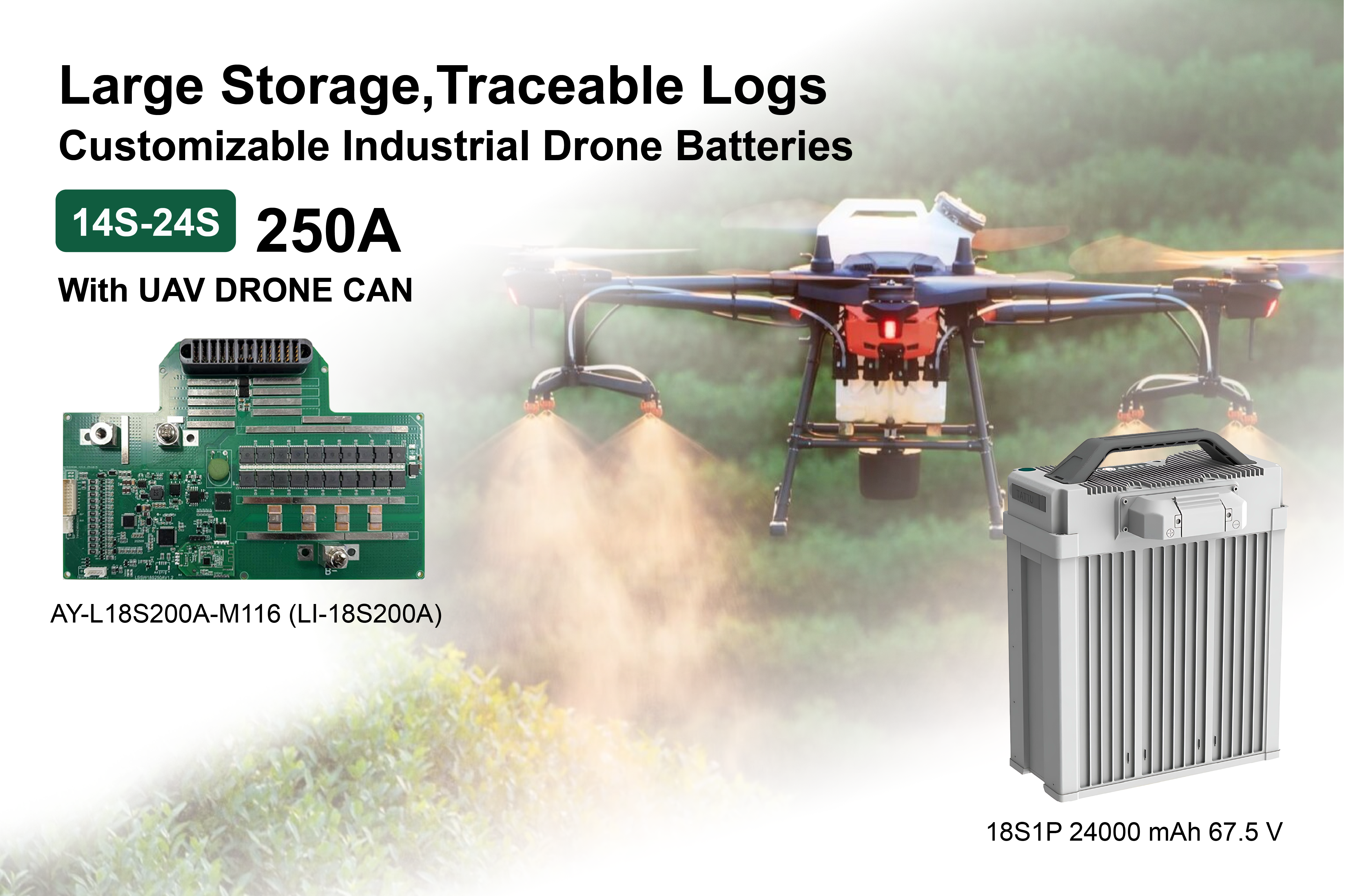

Customizable agricultural drone BMS-06
  • + -

    High Capacity Design

    For industrial UAV applications, a 24000 mAh design offers extended operation time.

  • + -

    Integrated Smart BMS

    Includes CAN connectivity to transfer temperature, voltage, and current data between the flight controller and battery.

  • + -

    Custom Voltage and Capacity Options

    Allows for customizable setup to satisfy a range of drone system needs.

  • + -

    Cell Balancing Function

    Keeps all cells' charge levels consistent to maximize battery performance.

  • + -

    Wide Compatibility

    Fits a variety of industrial UAV types, such as transport, firefighting, and agricultural drones.

  • + -

    Adjustable Current Output

    Firmware settings allow for the modification of current limit and cutoff parameters.

  • + -

    Temperature Management Support

    Allows for monitoring and modification according to operational and environmental temperatures.

  • + -

    Durable Housing Structure

    During drone operation, the outer shell shields cells from collision and vibration.

  • + -

    Data Recording Function

    Records cycles of charging and discharging for battery upkeep and performance monitoring.

  • Designed to lower payload pressure without sacrificing structural dependability and strength.

  • Enables customized setups for UAV systems used in agriculture, logistics, mapping, and inspection.

APPLICATIONS

The 18S1P 24000 mAh 67.5V Industrial Drone Battery is used in a variety of professional UAV applications where reliable performance and high power are essential.
Customizable agricultural drone BMS-07
01

Agricultural Drones

Extends flying endurance to support field mapping, spraying, and seeding operations.
Customizable agricultural drone BMS-08
01

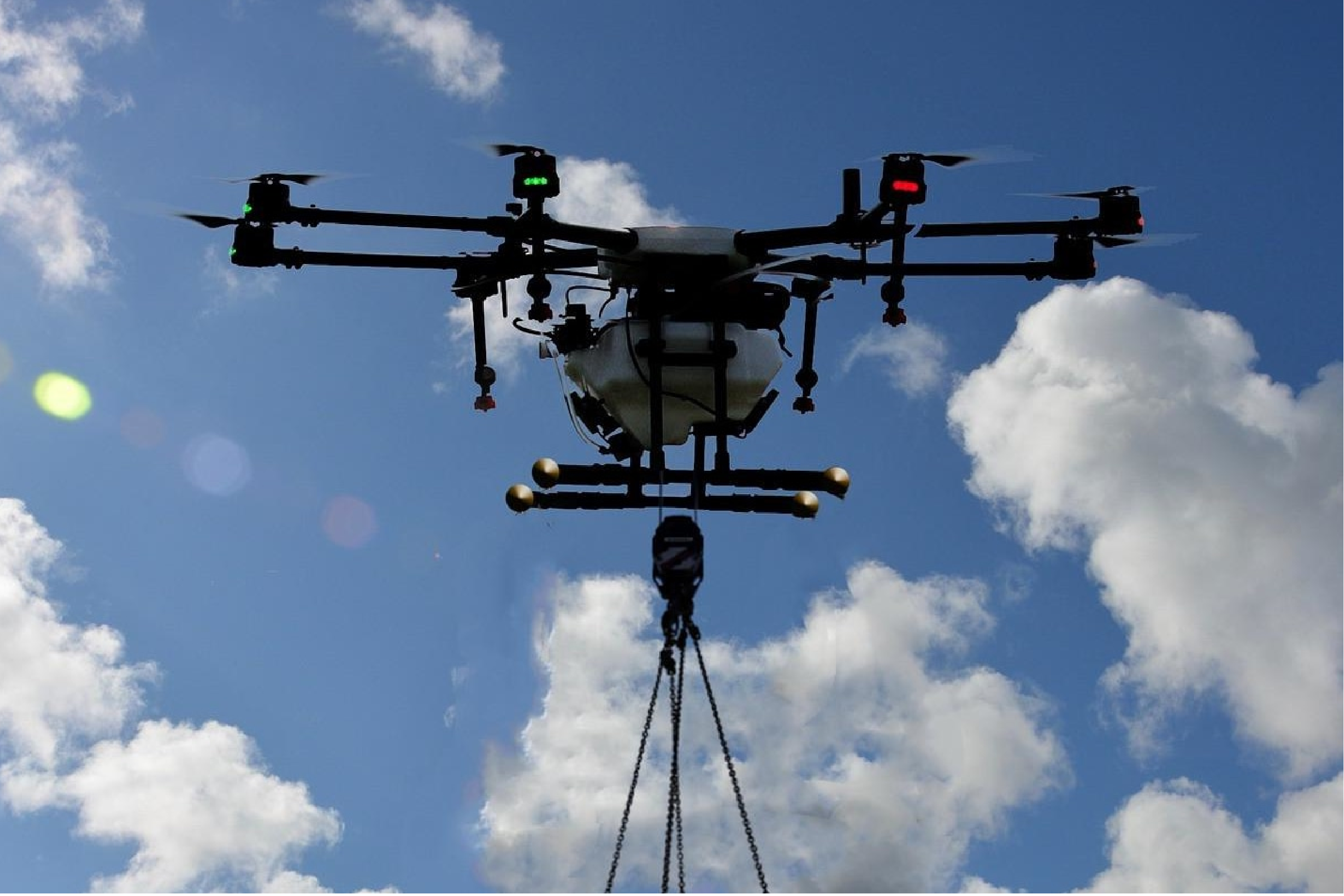

Heavy-Duty Lifting Drones

Offers a powerful power output for lifting and cargo transfer tasks.
Customizable agricultural drone BMS-09
01

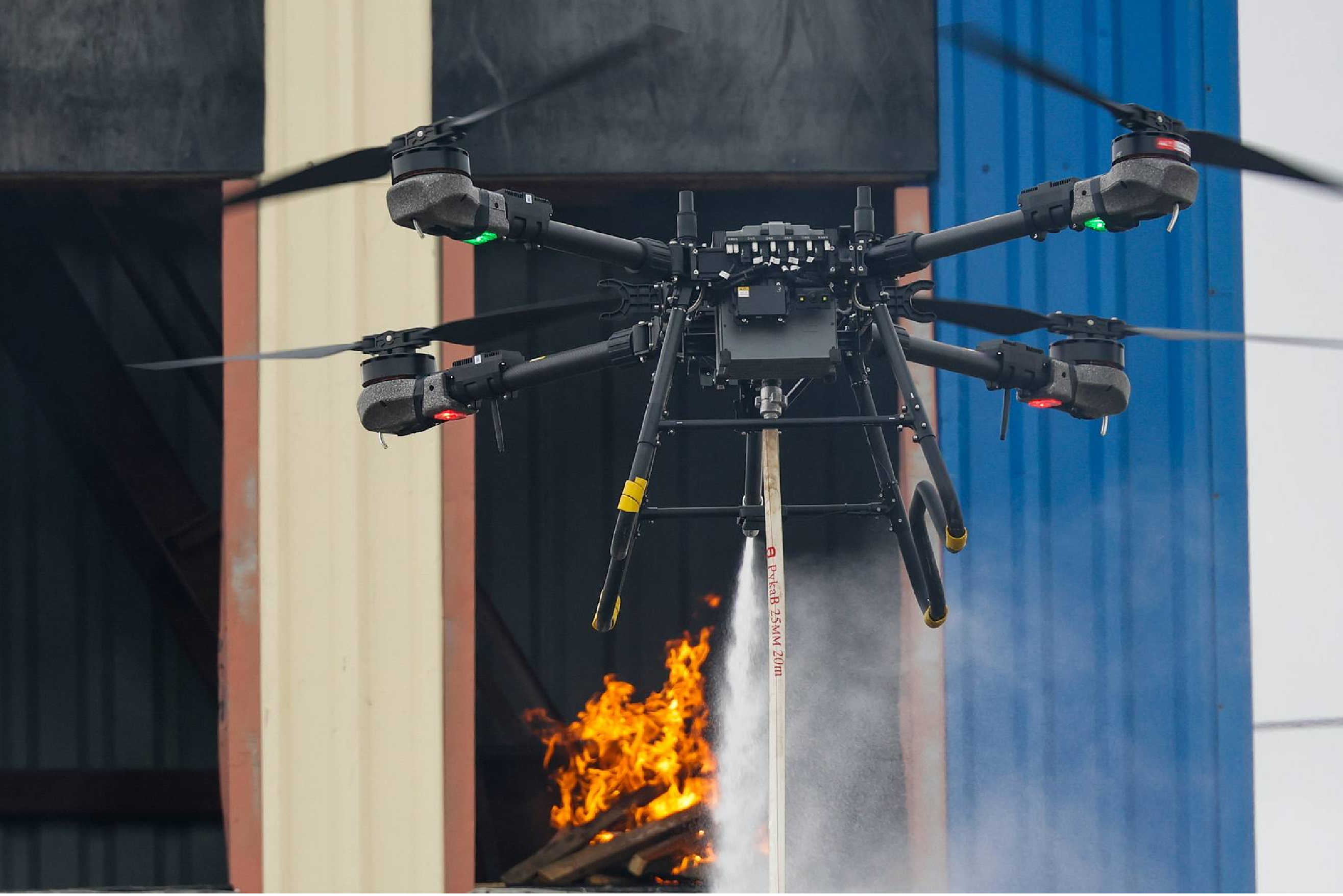

Firefighting Drones

Provides energy for thermal imaging, inspection, and aerial firefighting.
UAV BMS 4-17 200A-11
01

Transport Drones

For efficient long-distance cargo delivery, use reliable power management and CAN-based diagnostics.
01

Details DISPLAY

Customizable agricultural drone BMS-12

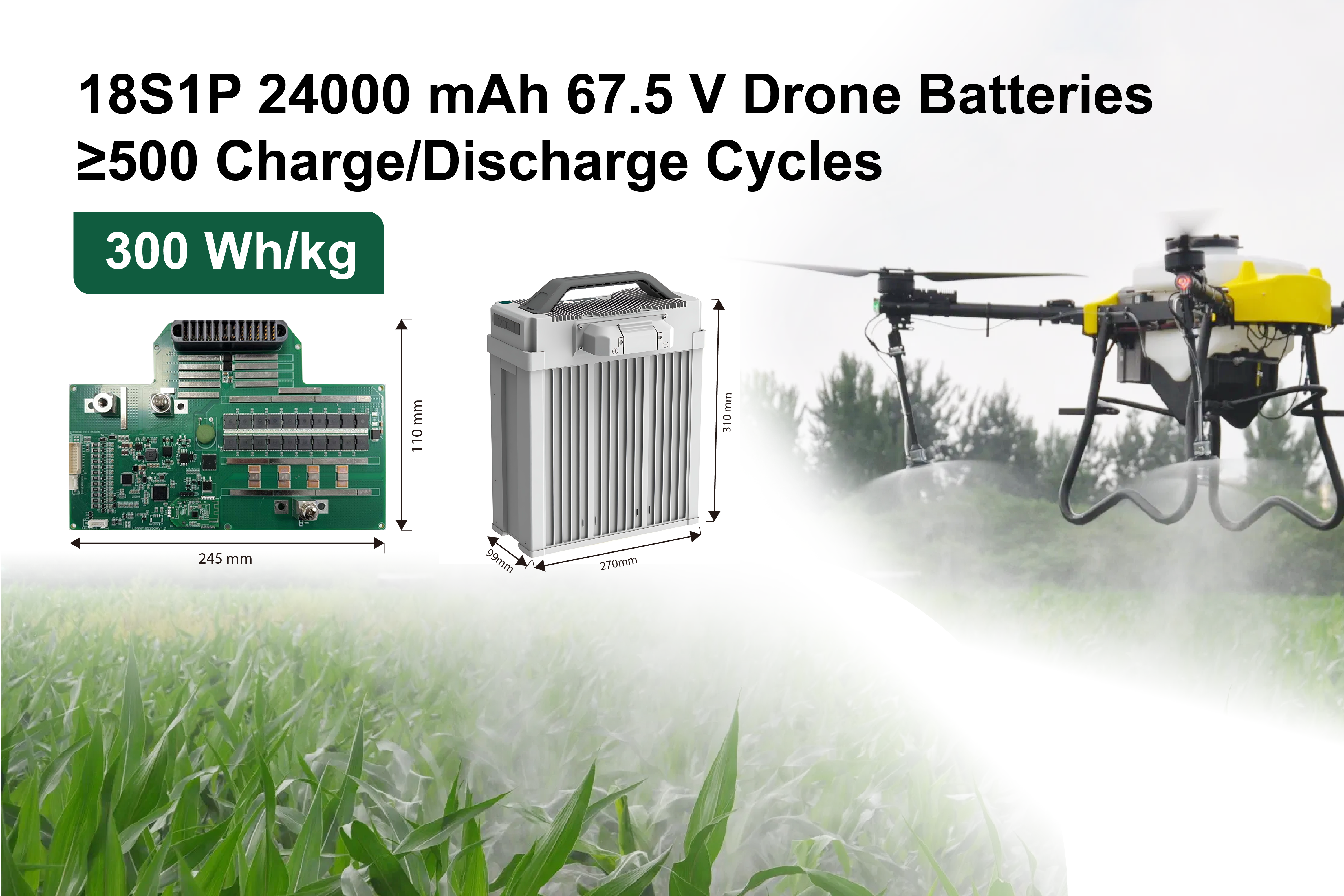

Customizable agricultural drone BMS-10
Customizable agricultural drone BMS-11
010203

Why Choose Us

We are your trusted partner for scalable, intelligent, high-current BMS systems, regardless of whether your company manufactures electric cars, supplies battery packs, or integrates systems. We can power your next breakthrough.

21+ Years of Industry Experience

We are well-positioned to understand the demands of the growing electric car and energy storage markets because to our more than 21 years of experience in battery management and power solutions.
advantage-2

Innovative R&D Capabilities

Our committed R&D team never ceases pushing the boundaries of technology to deliver smarter, safer, and more effective products to the market, whether it's through integrated software platforms or creative BMS design.
advantage-2

Proven Product Reliability

To guarantee longevity, stability, and optimal performance in real-world applications like golf carts, motorbikes, forklifts, and energy storage systems, our BMS and power solutions are put through rigorous testing under demanding situations.
advantage-2

Customization and OEM/ODM Services

Form factors, wireless modules, communication protocols, and battery kinds are just a few of the customization possibilities we provide to suit your unique requirements.
advantage-2

Comprehensive Technical Support

Our technical staff is ready around-the-clock to assist you with setup, integration, and troubleshooting, from pre-sales guidance to post-purchase support.
advantage-2

Certifications and Compliance

Every product we sell is of the best quality and safety since we closely follow international standards like CE, IEC62109, VDE, and CQC.
advantage-2

Our Certificates

 Our Certificates
Frequently Ask Questions
For more information or technical support, feel free to contact us.
INQUIRY

Q1:Which is better 18650 or 21700 for drones?

A:Greater Energy Density: Compared to the 18650, the 21700 cell has a greater energy density (Wh/kg), which enables longer runtimes and greater capacity. This is perfect for robotics or UAVs when longer operating times are crucial.

Q2: What type of battery is used in drones?

A:LiPo or Li-ion batteries are used in the majority of drones because of their high energy density and efficiency. Battery life can be increased with proper maintenance and storage, and making educated choices is aided by knowing important concepts like voltage, capacity, and C-rating.

Q3:Which is better, 1C or 0.5C battery?

A: 10Ah battery may supply 10 amps for an hour since manufacturers typically rate capacity at the 1C rate. On the other hand, it delivers 5 amps for two hours at 0.5C and 20 amps for thirty minutes at 2C.

Q4: What is the 80 20 rule for lithium batteries?

A:Lithium batteries should be charged up to 80% for everyday usage, according to the 80/20 rule. Only when necessary—for example, prior to a lengthy journey or a complete discharge cycle—charge to 100%. Keep the battery from discharging below 20%.

Q5:Do military drones use lithium batteries?

A: Lithium-ion batteries are used in the majority of small military drones due to their better density and operational durations. For single-use "kamikaze" drones carrying explosive payloads, these batteries might be disposable.

Q6: Which is better Li Po or Li-Ion?

A: Longer runtimes and lighter weight are made possible by Li-ion batteries' increased energy density (Wh/kg). Because of the metal container, lithium-ion batteries are safer than lithium polymer batteries. has a discharge capacity of up to 2.5 volts per cell.
