Customizable 12S–14S 120A Drone UAV Smart Battery Monitoring Board
Customizable UAV / Drone Smart BMS
Drone UAV Smart Monitoring Board.webp

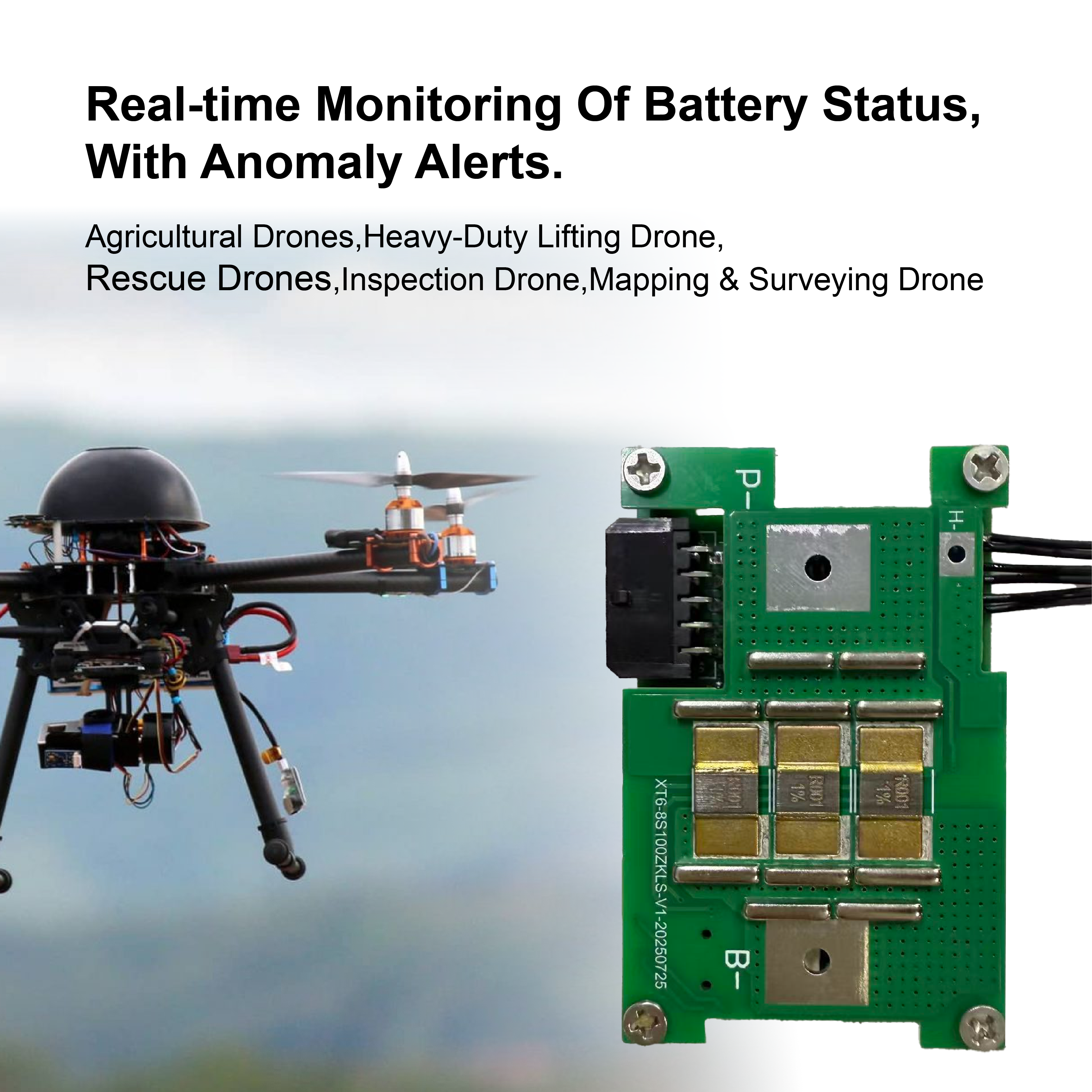

Smart Monitoring Board.webp
Agricultural Drones Monitoring Board .webp
Inspection Drones Monitoring Board.webp

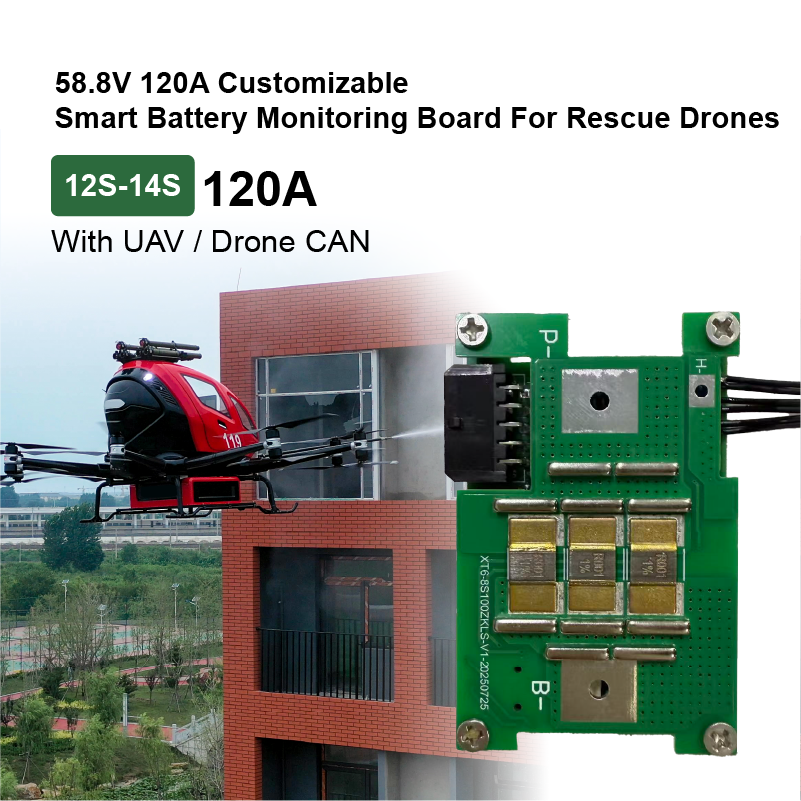

Rescue Drones Monitoring Board.webp

Customizable 12S–14S 120A Drone UAV Smart Battery Monitoring Board

Product Introduction

By tracking battery performance metrics in real time, the 12S–14S 120Ah Smart Battery Monitoring Board supports drone and UAV power systems. In order to guarantee precise energy measurement and effective operation, it assists in controlling voltage, current, temperature, and cell balance. This board may be tailored for various voltage levels, communication interfaces, and firmware needs, making it appropriate for use with agricultural, heavy-duty lifting, rescue, inspection, and mapping drones.

  • Model AY-ZX14S120A(Li-14S120A)
  • Battery Type Li-ion,Lithium polymer,Semi-solid
  • Series (S) 12S-14S
  • Rated Voltage 58.8V
  • Continuous Discharge Current 120A
  • Battery Size L70 × W45 × T15 mm
  • Communication Protocols Drone UAV CAN / UART / BLE / CAN
  • Application Fields Agricultural Drones,Heavy-Duty Lifting Drone,Rescue Drones,Inspection Drone,Mapping & Surveying Drone
分享 LinkedIn X WhatsApp Facebook Reddit Email Telegram
Contact us Download

Key Features

In order to maximize the operation of the drone power system, this monitoring board provides precise measurement and communication capabilities.

For more information or technical support, feel free to contact us.

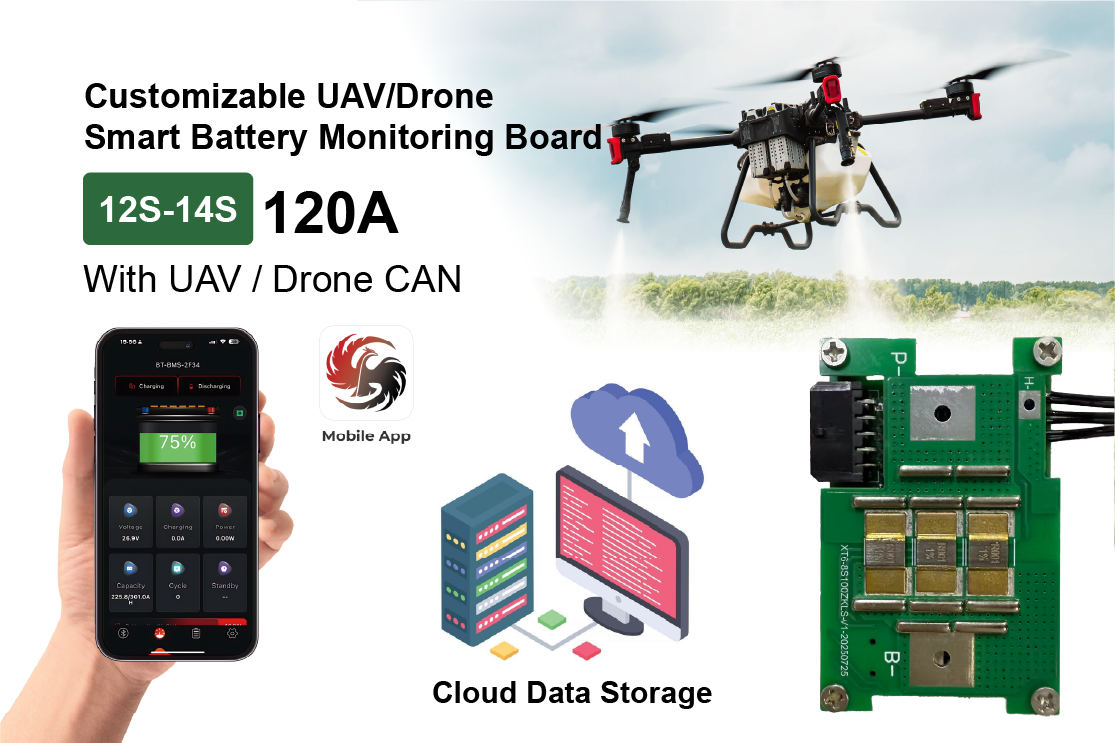

Customizable UAV-Drone -06
  • + -

    Multi-Channel Cell Monitoring

    Allows for flexible integration with different drone battery packs by supporting cell configurations ranging from 12S to 14S.

  • + -

    Real-Time Data Output

    Uses CAN or UART connectivity to continuously update temperature, voltage, and current measurements.

  • + -

    Cell Balancing Function

    Automatically modifies each cell's voltage to keep performance constant throughout cycles of charging and discharging.

  • + -

    Modular Interface Design

    Connecting to flight controllers or ground station equipment is made simple via CAN and UART interfaces.

  • + -

    Custom Firmware Settings

    To suit various drone systems, parameters like voltage threshold, current limit, and sampling rate can be changed.

  • + -

    Compact PCB Layout

    Designed to fit into UAV battery compartments, this structure is lightweight and compact.

  • + -

    Data Logging Capability

    Keeps track of operating data and charge/discharge cycles for maintenance planning and performance analysis.

  • + -

    Temperature Monitoring

    Prevents battery stress under severe loads by detecting temperature changes during flight.

  • + -

    Compatibility with BMS Units

    Can cooperate with battery management systems to provide comprehensive solutions for UAV power control.

  • Designed to lower payload pressure without sacrificing structural dependability and strength.

  • Enables customized setups for UAV systems used in agriculture, logistics, mapping, and inspection.

APPLICATIONS

Many professional UAVs that require energy management and flying data collection use this battery monitoring board.
Agricultural drones
01

Agricultural Drones

Monitors battery performance to maximize energy use when spraying or sowing.
Heavy-duty lifting drone
01

Heavy-Duty Lifting Drones

Keeps an eye on high-current batteries used for transportation or lifting.
Rescue Drones
01

Rescue Drones

Guarantees consistent power measurement for long-term and emergency missions.
Inspection drone
01

Inspection Drones

Facilitates thorough observation during industrial and infrastructure inspection flights.
Mapping & Surveying Drone
01

Mapping & Surveying Drones

Gives drones carrying out long-range mapping or surveying operations reliable battery status information.
0102

Details DISPLAY

Customizable agricultural drone BMS-12

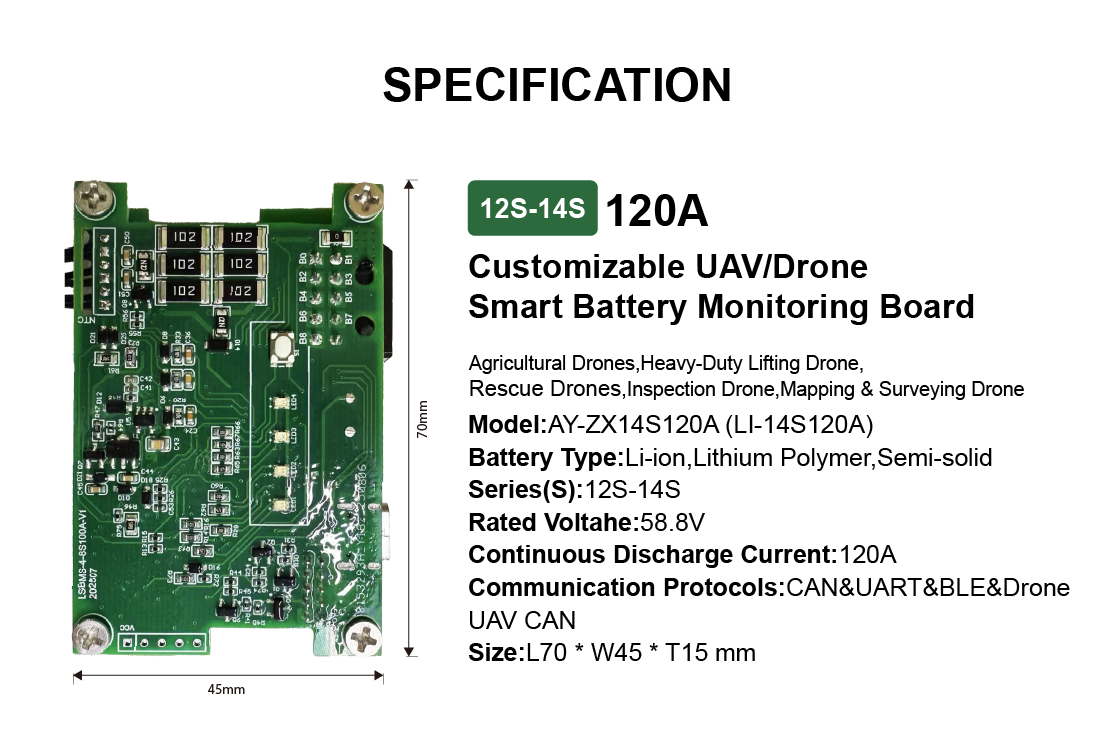

Monitoring Board Specification
Monitoring Board Application
010203

Why Choose Us

We are your trusted partner for scalable, intelligent, high-current BMS systems, regardless of whether your company manufactures electric cars, supplies battery packs, or integrates systems. We can power your next breakthrough.

21+ Years of Industry Experience

With over 21 years of experience in battery management and power solutions, we are well-positioned to comprehend the needs of the expanding electric vehicle and energy storage markets.
advantage-2

Innovative R&D Capabilities

Whether it's through integrated software platforms or innovative BMS design, our dedicated R&D team never stops pushing the boundaries of technology to provide smarter, safer, and more effective products to the market.
advantage-2

Proven Product Reliability

Our BMS and power solutions are put through rigorous testing under challenging conditions to ensure longevity, stability, and optimal performance in real-world applications including golf carts, motorbikes, forklifts, and energy storage systems.
advantage-2

Customization and OEM/ODM Services

We offer a variety of customization options to meet your specific needs, including form factors, wireless modules, communication protocols, and battery types.
advantage-2

Comprehensive Technical Support

From pre-sales advice to post-purchase assistance, our technical staff is available around-the-clock to help you with setup, integration, and troubleshooting.
advantage-2

Certifications and Compliance

Because we strictly adhere to international standards like CE, IEC62109, VDE, and CQC, every product we sell is of the highest quality and safety.
advantage-2

Our Certificates

 Our Certificates
Frequently Ask Questions
For more information or technical support, feel free to contact us.
INQUIRY

Q1:What happens when a BMS fails?

A:As demonstrated by well-known recalls like the Samsung Galaxy Note 7, a Battery Management System (BMS) failure can result in decreased performance, early battery death, or even catastrophic events like fires or explosions because it cannot stop individual cells from overcharging, deep discharging, or overheating, which causes cell imbalance, rapid degradation, and dangerous thermal runaway. While a safe failure might simply turn off the batteries, a bad one could allow hazardous conditions to continue, increasing the risk of serious harm and damage.

Q2: What is the difference between a BMS and a battery monitor?

A:A BMS gathers information and utilizes it to optimize every single battery. On the other hand, a battery monitor gathers data and shows it so you can maximize the efficiency of your battery system as a whole. There is much more to battery monitors than just showing your system's charge level.

Q3:Can I run a lithium battery without BMS?

A:It is dangerous to operate a lithium battery without a BMS. If the batteries are discharged excessively, they will most likely be damaged and bulge even if they do not vent or catch fire.

Q4:What happens if you don't reset BMS?

A:A battery may explode by thermal runaway if it overheats as a result of a broken BMS. This could harm you and other individuals in addition to causing irreversible damage to your car. In addition to impairing engine efficiency, an overheated automobile battery can release smoke and unpleasant sulfuric odors.

Q5:Does charging to 100% damage the battery?

A: Yes, continuously charging to 100% does slightly accelerate battery aging compared to stopping at 80–90%. High voltage stresses the battery, but modern devices have safeguards, so it won't harm it right away. The main factor is heat, so it's important to keep devices cool while charging, and optimal charging settings help maintain battery health over time.

Q6: Why is 30000mAh not allowed in flight?

A:Power banks larger than 100 watt-hours (Wh) are prohibited in the cabin on several aircraft. This maximum is typically exceeded by a typical 30,000mAh power bank. Because it presents a safety risk, you are unable to bring it on the aircraft.
