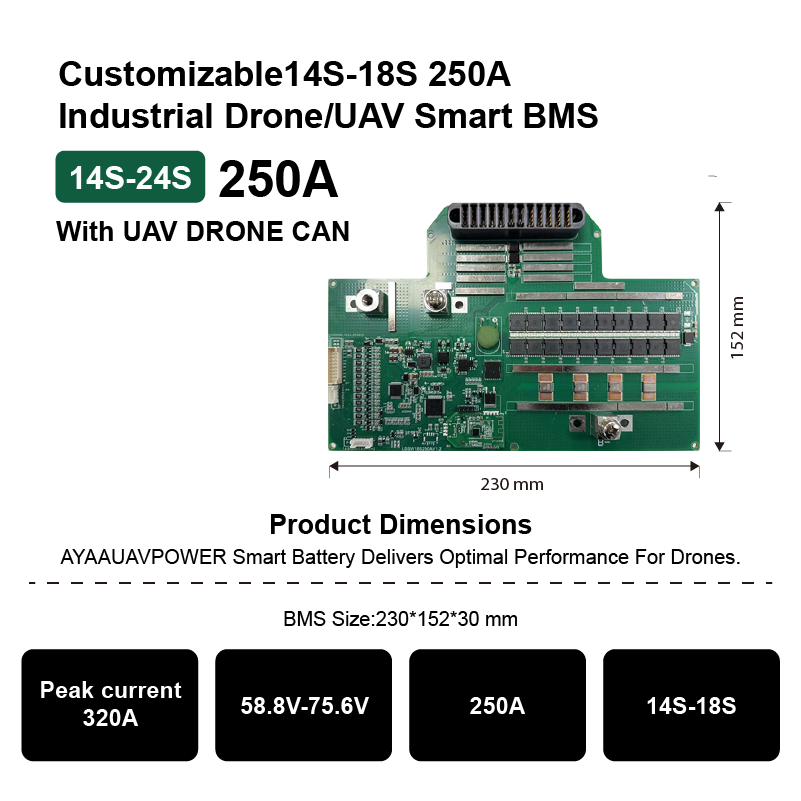

Customizable drone BMS.webp

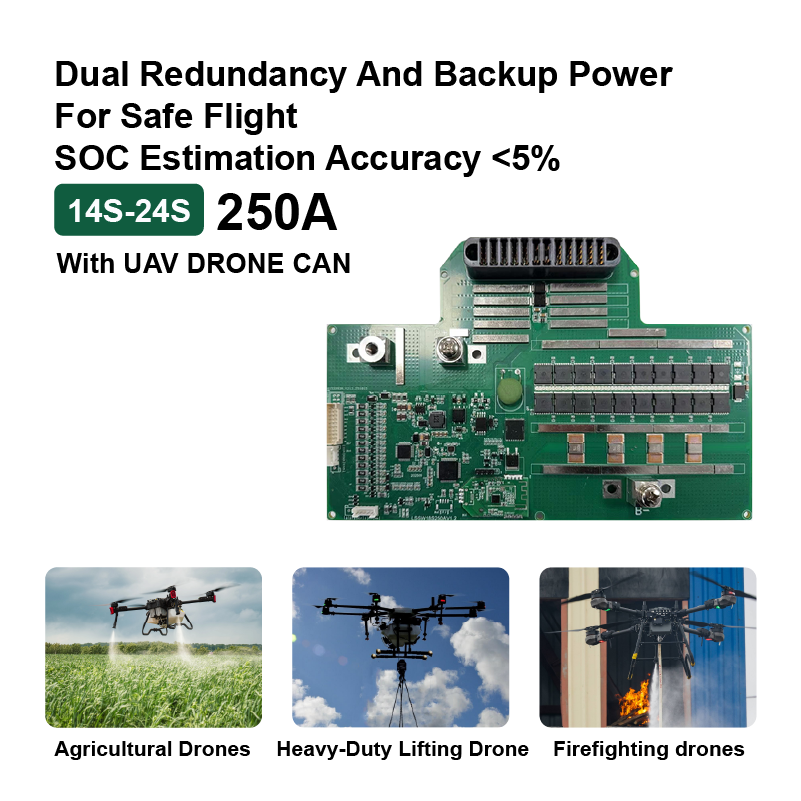

drone BMS.webp

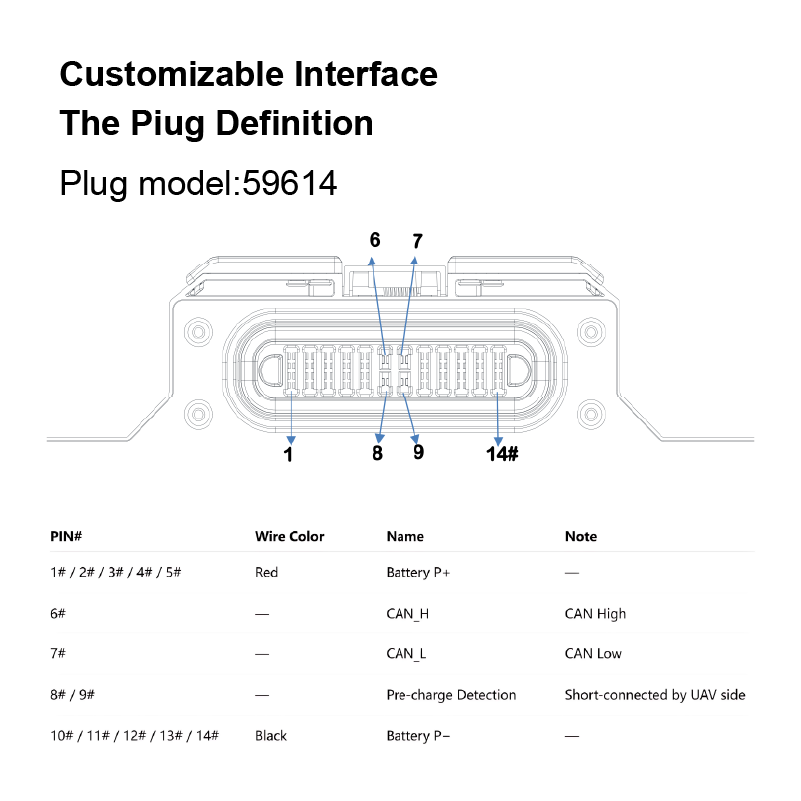

Customizable Interface drone BMS.webp

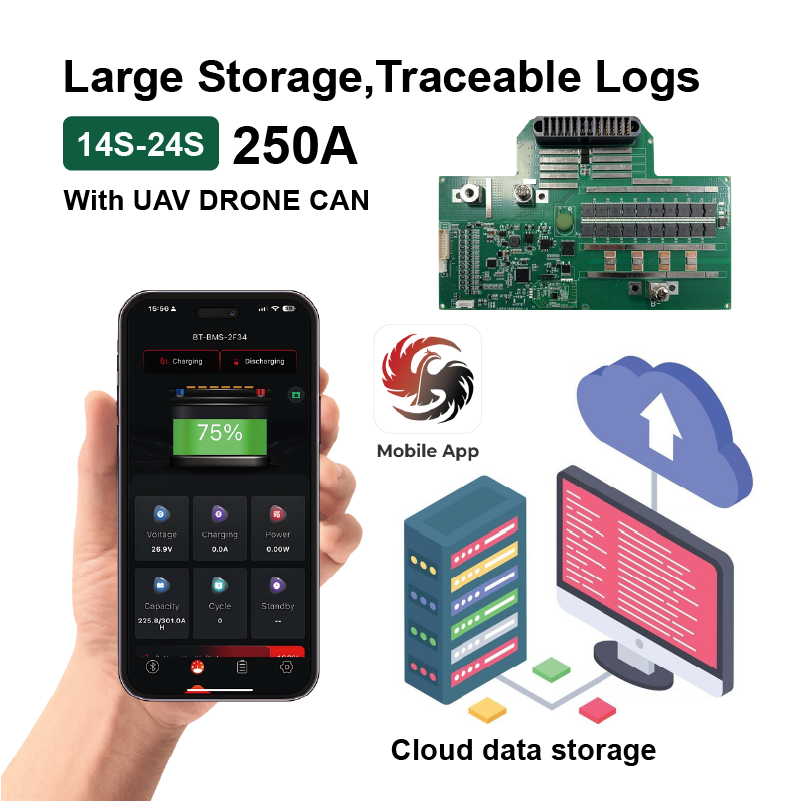

Smart BMS app.webp

Customizable 14S-24S 250A agricultural drone Smart BMS with UAV DRONE CAN

Product Introduction

Agricultural drones and other UAVs with high power requirements are the target market for the 14S–24S 250A Smart BMS. Through the UAV DRONE CAN interface, this device offers real-time battery performance control. In order to maintain effective energy consumption across large-capacity battery systems, it assists in controlling charge, discharge, balance, and protection functions. Depending on the particular needs of the drone, the design can be altered for firmware configuration, communication protocol, and current limit.

  • Model AY-L18S250A-M117 (LI-18S250A)
  • Battery Type Li-ion,Lithium polymer,Semi-solid
  • Series (S) 14S – 24S
  • Rated Voltage 67.5V
  • Continuous Discharge Current 250A
  • Peak Current 320A
  • Battery Size L230 × W152 × T30 mm
  • Communication Protocols Drone UAV CAN / BLE
  • Application Fields Agricultural Drones,Heavy-Duty Lifting Drone,Rescue Drones,Inspection Drone,Mapping & Surveying Drone
分享 LinkedIn X WhatsApp Facebook Reddit Email Telegram
Contact us Download

Key Features

High-capacity batteries used in industrial and agricultural UAVs are monitored and managed by this Smart BMS.

For more information or technical support, feel free to contact us.

agricultural drone Smart BMS
  • + -

    UAV DRONE CAN Communication

    Allows the battery system and flight controller to communicate data in real time for temperature, voltage, and current monitoring.

  • + -

    High Current Capacity

    Manages a constant current output of up to 250A for drones with big payloads or huge propulsion systems.

  • + -

    Wide Voltage Range

    Adaptable to several drone models, compatible with battery packs ranging from 14S to 24S configurations.

  • + -

    Balancing Function

    Maintains a constant energy distribution by equalizing each cell's voltage during cycles of charging and draining.

  • + -

    Parameter Customization

    It is possible to modify voltage protection points, current restrictions, and communication protocols to suit the requirements of the target UAV.

  • + -

    Data Logging Function

    Keeps track of operating data and battery cycles for analysis and maintenance scheduling.

  • + -

    Modular Design

    Drone battery compartments with limited space can benefit from a small and integrated board structure.

  • + -

    Temperature Detection

    Uses integrated sensors to measure battery temperature in order to help control heat conditions throughout extended operations.

  • + -

    Compatibility with Multiple Drone Models

    Originally intended for use with agricultural drones, it can also be incorporated into UAV platforms for lifting, rescue, or transportation.

  • Designed to lower payload pressure without sacrificing structural dependability and strength.

  • Enables customized setups for UAV systems used in agriculture, logistics, mapping, and inspection.

APPLICATIONS

The 14S–24S 250A Smart BMS offers effective energy management for challenging flight situations and is appropriate for a variety of drone types.
Agricultural drones
01

Agricultural Drones

Oversees the large-capacity batteries used in UAVs for field management, mapping, and spraying.

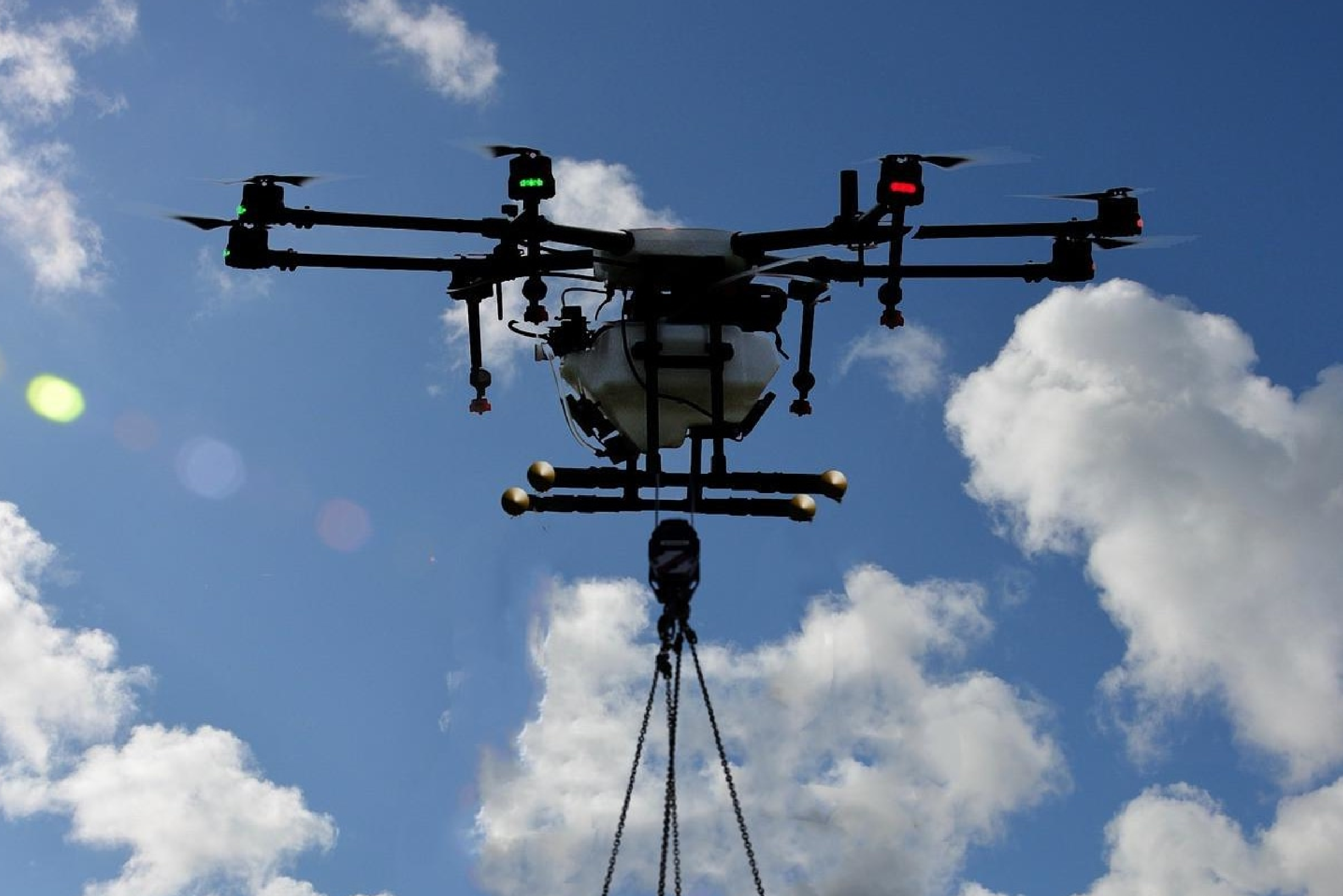

Heavy-duty lifting drone
01

Heavy-Duty Lifting Drones

Enables monitoring and power distribution for high-payload activities.
Rescue Drones
01

Rescue Drones

During emergency or search operations, it guarantees accurate battery tracking and performance monitoring.
01

Details DISPLAY

Customizable agricultural drone BMS-12

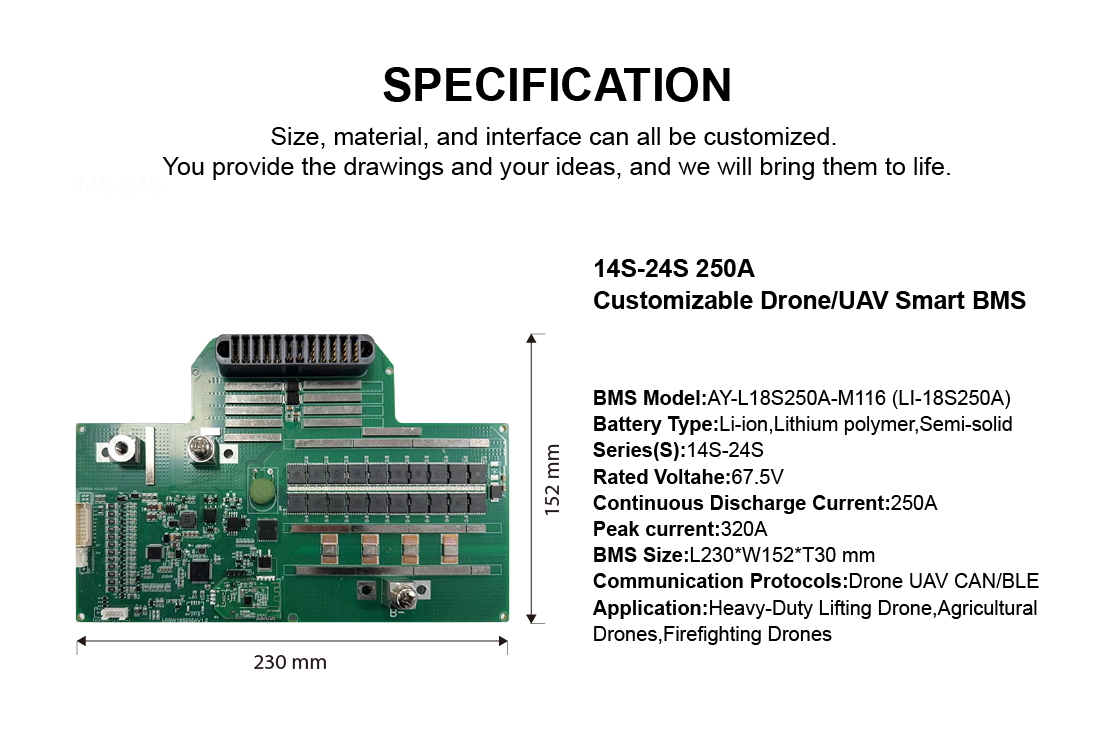

drone BMS size
Customizable agricultural drone BMS-13
010203

Why Choose Us

We are your trusted partner for scalable, intelligent, high-current BMS systems, regardless of whether your company manufactures electric cars, supplies battery packs, or integrates systems. We can power your next breakthrough.

21+ Years of Industry Experience

We are well-positioned to understand the demands of the growing electric car and energy storage markets because to our more than 21 years of experience in battery management and power solutions.
advantage-2

Innovative R&D Capabilities

Whether it's through integrated software platforms or innovative BMS design, our dedicated R&D team never stops pushing the boundaries of technology to provide smarter, safer, and more effective products to the market.
advantage-2

Proven Product Reliability

Our BMS and power solutions are rigorously tested under challenging conditions to ensure longevity, stability, and optimal performance in real-world applications such as golf carts, motorbikes, forklifts, and energy storage systems.
advantage-2

Customization and OEM/ODM Services

We offer a variety of customization options to meet your specific needs, including form factors, wireless modules, communication protocols, and battery types.
advantage-2

Comprehensive Technical Support

From pre-sales advice to post-purchase assistance, our technical staff is available around-the-clock to help you with setup, integration, and troubleshooting.
advantage-2

Certifications and Compliance

Because we strictly adhere to international standards like CE, IEC62109, VDE, and CQC, every product we sell is of the highest quality and safety.
advantage-2

Our Certificates

 Our Certificates
Frequently Ask Questions
For more information or technical support, feel free to contact us.
INQUIRY

Q1:What is the full form of BMS in drone?

A:Any electronic system that facilitates the safe use and extended life of a rechargeable battery (cell or battery pack) in real-world situations while monitoring and estimating its various states (such as state of health and state of charge), calculating...

Q2: What is the battery management system of a drone?

A:The lithium-based battery packs used in unmanned aerial vehicles (UAVs) are managed and safeguarded by a drone battery management system (BMS), a sophisticated electronic system.

Q3:What is the battery life of agricultural drones?

A:The battery life of heavy-duty drones is usually between 20 and 30 minutes. In conclusion, the longevity of agricultural drones is a complicated matter that is influenced by numerous variables. Their lifespan can be increased by selecting high-quality products, using them correctly, and maintaining them.

Q4:What does 5000 cycle battery mean?

A:These batteries have a cycle life of roughly 5000. This means that before their usable life ends, they receive roughly 5000 cycles of charging and discharging.

Q5:How far can a 1000 dollar drone fly?

A: Prosumer drones can travel up to 10 miles (16 kilometers), whereas consumer drones usually have a range of 1 to 5 miles (1.6 to 8 kilometers). Under ideal circumstances, commercial drones tailored for specific functions may frequently fly farther than 10 miles (16+ kilometers).

Q6: What is the lifespan of an agriculture drone?

A:Original material. In Ukraine, agricultural drones typically last 18 months. Nonetheless, the manufacturer frequently promises at least 500 flying hours, which is equivalent to three to five years under typical operating conditions.
